1mm Wire-to-Board Connectors from RXSY
Looking for 1mm pitch wire-to-board connectors? RXSY offers a complete range of 1mm wire-to-board connectors designed for reliable board-to-wire connections. Our 1mm connectors are JST-compatible, ROHS certified, and available in OEM/ODM customization. Key models include RXSY-SH1.0-N*PWT, RXSY-SH1.0-N*PLT, RXSY-NH1.0-N*PWT, RXSY-NH1.0-N*PLT.
| Model | Pitch | Mounting |
|---|---|---|

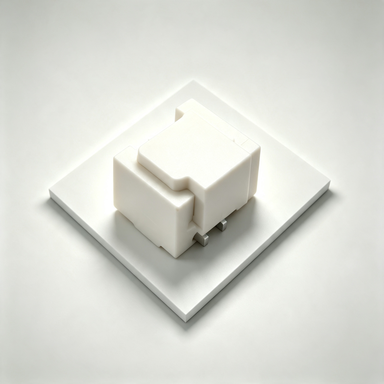

| RXSY-NH1.0-N*PLT | 1mm | SMD,P=1.0mm |
| RXSY-NH1.0-N*PWT | 1mm | SMD,P=1.0mm,Horizontal (SMT) |
| RXSY-SH1.0-N*PLT | 1mm | SMD,P=1.0mm |
| RXSY-SH1.0-N*PWT | 1mm | SMD,P=1.0mm,Horizontal (SMT) |
All RXSY connectors support fast sampling (7 days), small-batch customization and pin-to-pin replacement. Contact us for a quote today.
1mm Wire-to-Board Connector Specifications
| Parameter | Typical Value |
|---|---|
| Pitch | 1 mm |
| Rated Current | 1.0A |
| Rated Voltage | 250V AC/DC |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Withstanding Voltage | 500V AC/min |
| Operating Temperature | -40°C to +85°C |
| Applicable Wire | AWG #30–#26 |
| Contact Material | Phosphor bronze / Brass, tin or gold plated |
| Housing Material | PA66 (Nylon), UL94V-0 |
| Mating Cycles | ≥ 30 cycles |
| Compliance | RoHS / REACH |
How to Choose the Right 1mm Wire-to-Board Connector
- Confirm the pitch – 1mm must match your PCB hole spacing and mating header.
- Select pin count – count the signals you need; leave spare pins if future expansion is likely.
- Choose mounting type – SMT (reflow, high density) vs DIP/THT (through-hole, stronger hold).
- Orient the header – straight (vertical) or right-angle, depending on enclosure height.
- Check current rating – 1.0A per contact typical; derate ~20% for continuous loads.
- Locking & polarization – choose a latching type if vibration or blind mating is expected.
- Plating – tin for general use, gold for low-signal or high-mating-cycle applications.
Typical Applications
1mm wire-to-board connectors are widely used in industrial control boards, consumer electronics, smart home
devices, LED lighting drivers, battery packs, sensor modules and medical instruments.
Frequently Asked Questions
What is the current rating of a 1mm wire-to-board connector?
Typically 1.0A per contact at ambient temperature. For continuous loads above 50°C, derate by about 20%.
Is this connector JST compatible?
Yes. RXSY 1mm series are designed as pin-to-pin replacements for the corresponding JST series (PH, XH, SH, GH, ZH, VH, CH), so they drop into the same PCB footprint.
What wire gauge does it support?
AWG #30–#26 depending on the contact design. Contact us with your wire specification for confirmation.
Do you provide samples and small-batch orders?
Yes. Samples ship within 7 days and small-batch production is supported with flexible MOQ.
Can you customize pitch, plating or housing color?
Yes. OEM/ODM customization is available including pitch, pin count, plating, housing color and packaging.
Get a Quote
Send us your specification (pitch, pin count, mounting type, quantity) and we will respond within 24 hours.
