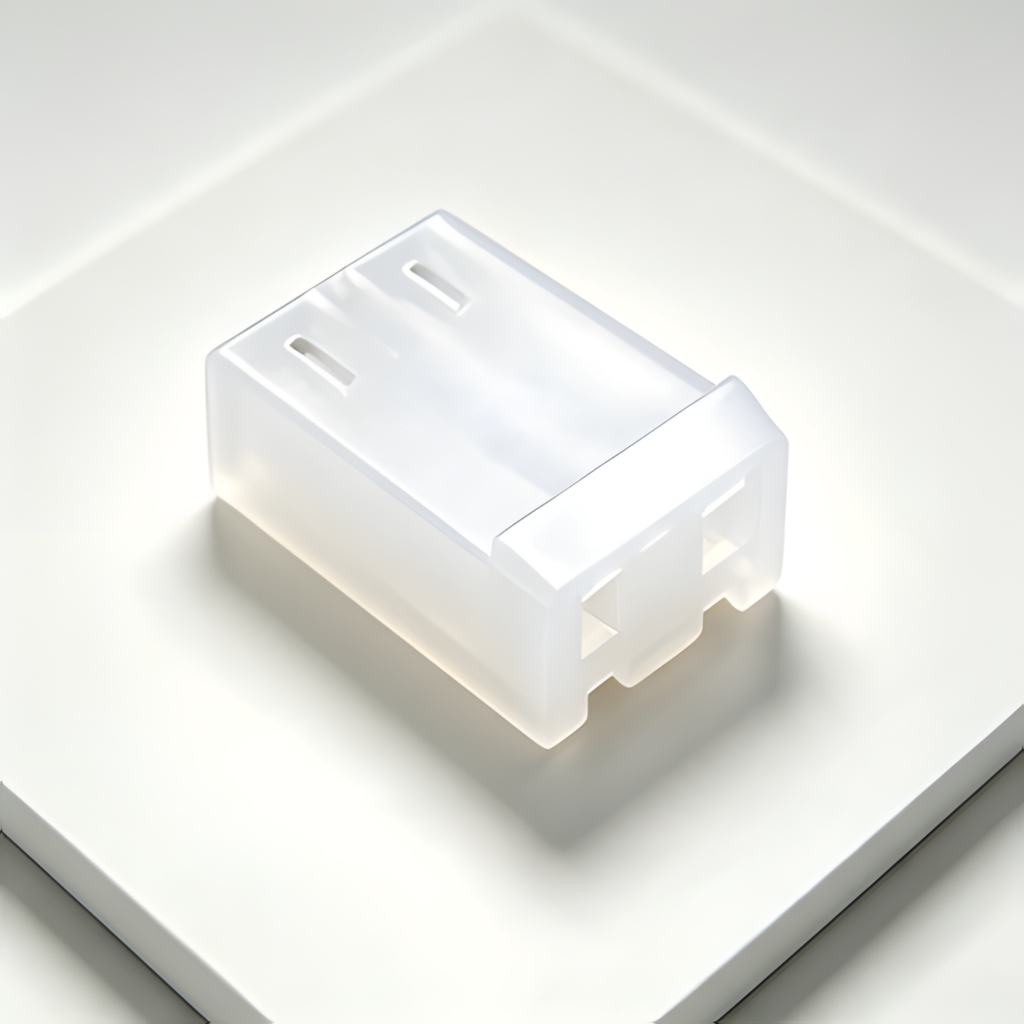

RXSY-CH5.08-N*Y 5.08mm Housing Connector (Wire-to-Board)
Housings
Description
RXSY CH5.08 series 5.08mm pitch locking straight through-hole pin header features through-hole mounting with locking anti-disengagement structure for significantly enhanced connection reliability. UL94V-0 flame-retardant PA66 plastic housing and high-conductivity tin-plated brass pins with wide pitch design meet high-current transmission requirements with stable contact and excellent vibration resistance. Locking mechanism effectively prevents wire harness disconnection in vibrating environments, compatible with CH5.08 locking housings. Direct replacement for imported brand equivalents, widely used in industrial control, power equipment, new energy vehicles, and charging stations for high-reliability connection applications. RoHS compliant.
Read more
Model
RXSY-CH5.08-N*Y
Series
Housings
Package Type
P=3.96MM
Pitch
5.08mm
Product Specifications
Product Type
HousingHousing
Pin Count / Contacts
2—16P
Number of Rows
1
Pins per Row
2—16P/排
Operating Temperature Range
-40°C~+85°C
Flame Rating
UL94-V0
Product Features
- 5.08mmPitch，RXSY-CH5.08SeriesCompatibledesign
- Single rowdesign，Compact structure
- locking design，secure connection
- LCP material，UL94-V0Flame Rating
- Operating Temperature Range宽：-40°C~+85°C
- wire-to-board / wire-to-board dual applications
- multiple pin counts available，meetingdifferent requirements
Datasheet (Datasheet)
PDFformat，Download to view full technical specifications
