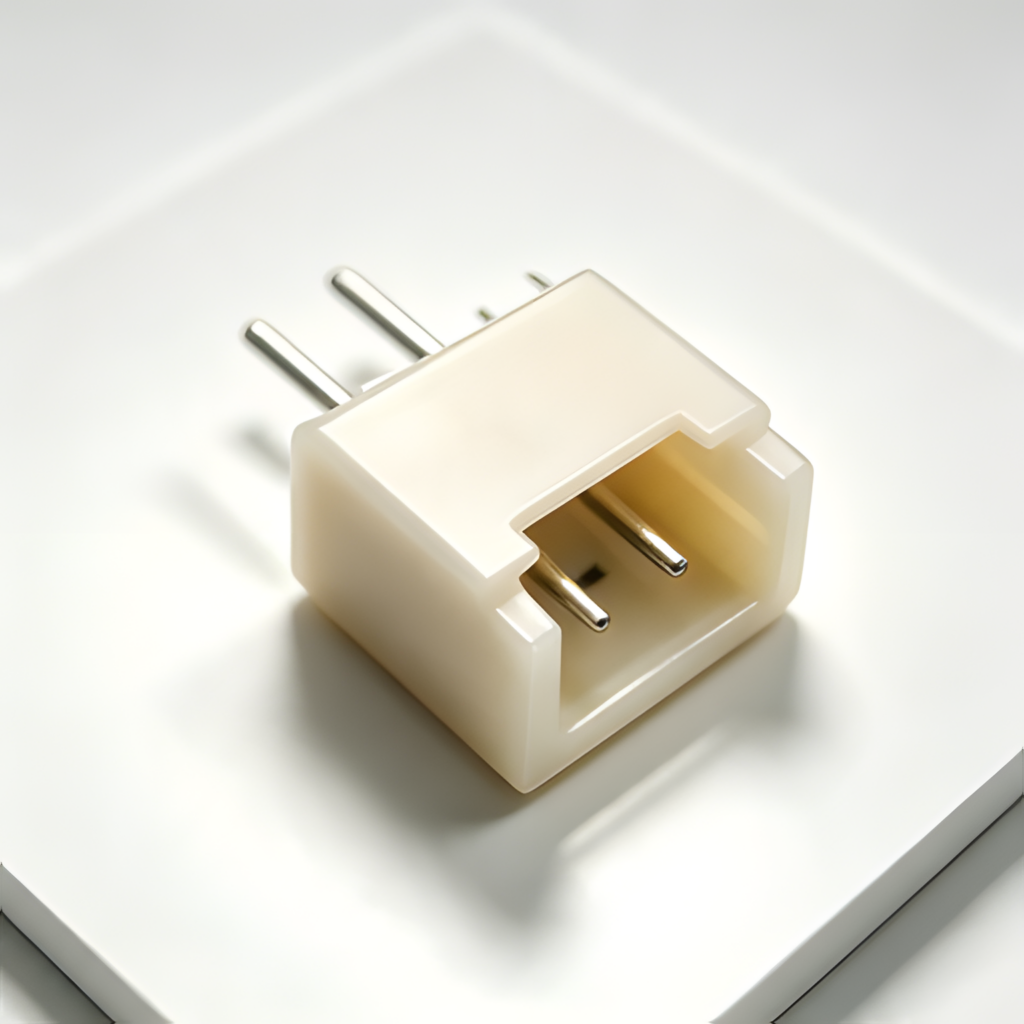

RXSY-MX1.25-N*PZZ 1.25mm Wire-to-Board Connector
Rectangular Connector Series
Description
RXSY-MX1.25-N*PZZ is an RXSY-MX1.25 series 1.25mm pitch wafer header (straight wafer header). Straight through-hole mounting type. Built with high-temperature PA66 insulator and brass tin-plated pins for excellent solderability. Single-row design supporting multiple pin configurations. Widely used in power supplies, appliance control boards, industrial equipment, and LED lighting. RoHS/REACH compliant, drop-in replacement for industry equivalents.
Read more
Model
RXSY-MX1.25-N*PZZ
Series
Rectangular Connector Series
Package Type
插件,P=1.25mm
Pitch
1.25mm
Product Specifications
Product Type
Wafer
Rated Current
1A AC/DC
Rated Voltage
125 AC/DC
Operating Temperature Range
-40°C~+85°C
Product Features
- 1.25mmPitch，Compact structure
- Rated Current 1A AC/DC，High current carrying capacity
- Rated Voltage 125 AC/DC
- Operating Temperature Range -40°C~+85°C，Strong adaptability
- mounting type：插件,P=1.25mm
Datasheet (Datasheet)
PDFformat，Download to view full technical specifications
